Features:
Instead of using fuses this circuit breaker box uses circuit breaker. It allows you to simply reset by pressing the button on top instead of having to replace a fuse.
Max operating voltage: 32V DC; Max 30A per circuit & 100A per panel.

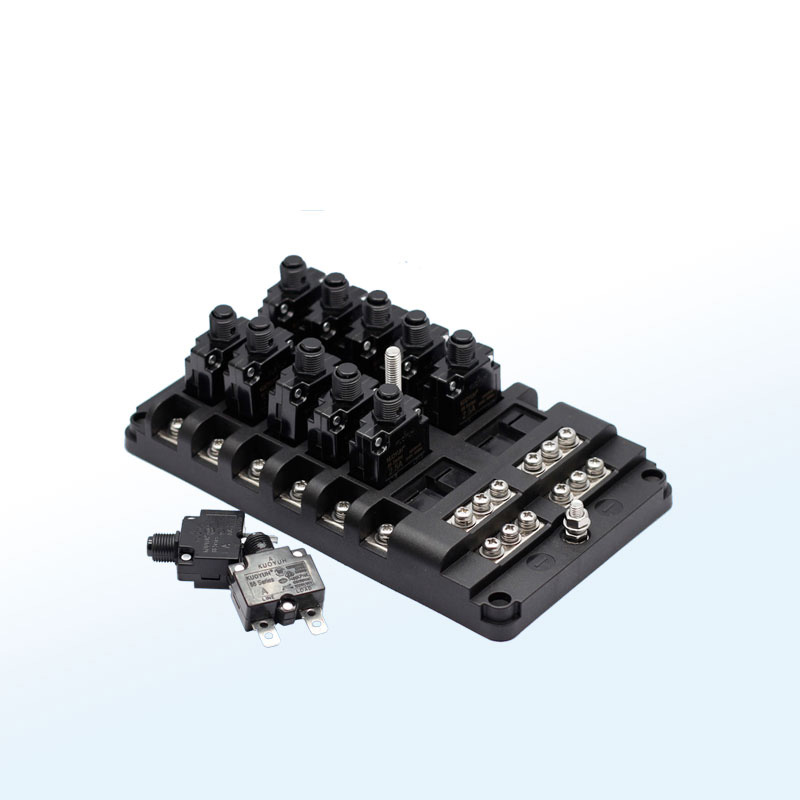

Used with 88 series circuit breaker 3A/5A/10A/15A/20A/25A/30A
Usage:
12 Way circuit breaker box for Automotive Cars Marine Boats,RVs,Trailers
Technical Parameters：
| Model | ZY12CB-12 | ||
| Brand | Zoyseay | ||
| Rated voltage | 32V | ||
| Current rating | Max 30A per circuit & 100A total | ||
| Input wiresize | 4–6 AWG | ||
| Output wiresize | 12-16AWG | ||
| Waterproof rating | IP 65 | ||
| 88series circuit breaker | 3A 5A 10A 15A 20A 25A 30A | ||
| LED | RED | ||

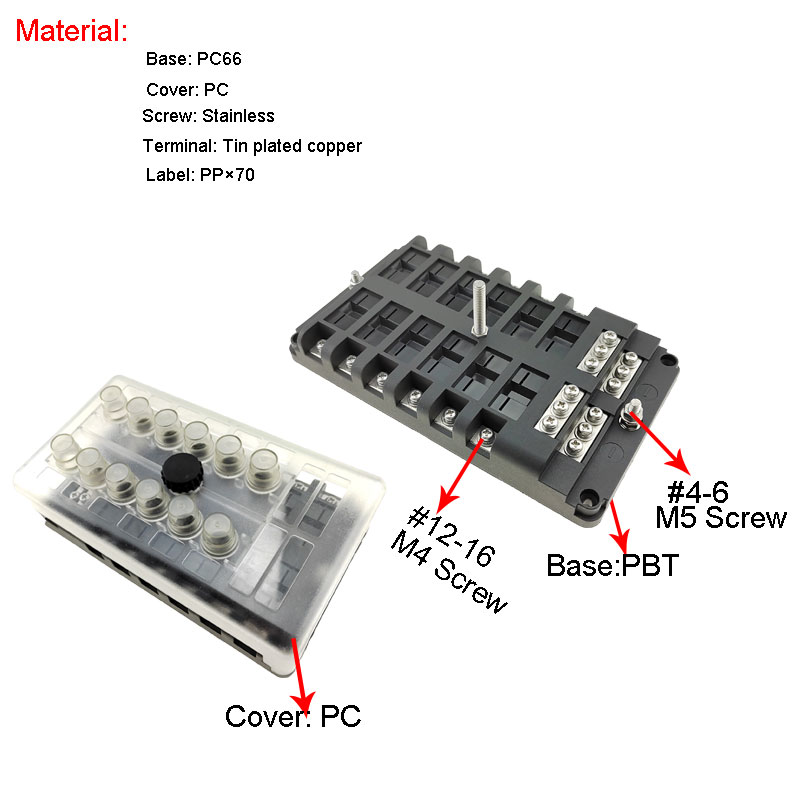

| Material | Base | PC66 | |

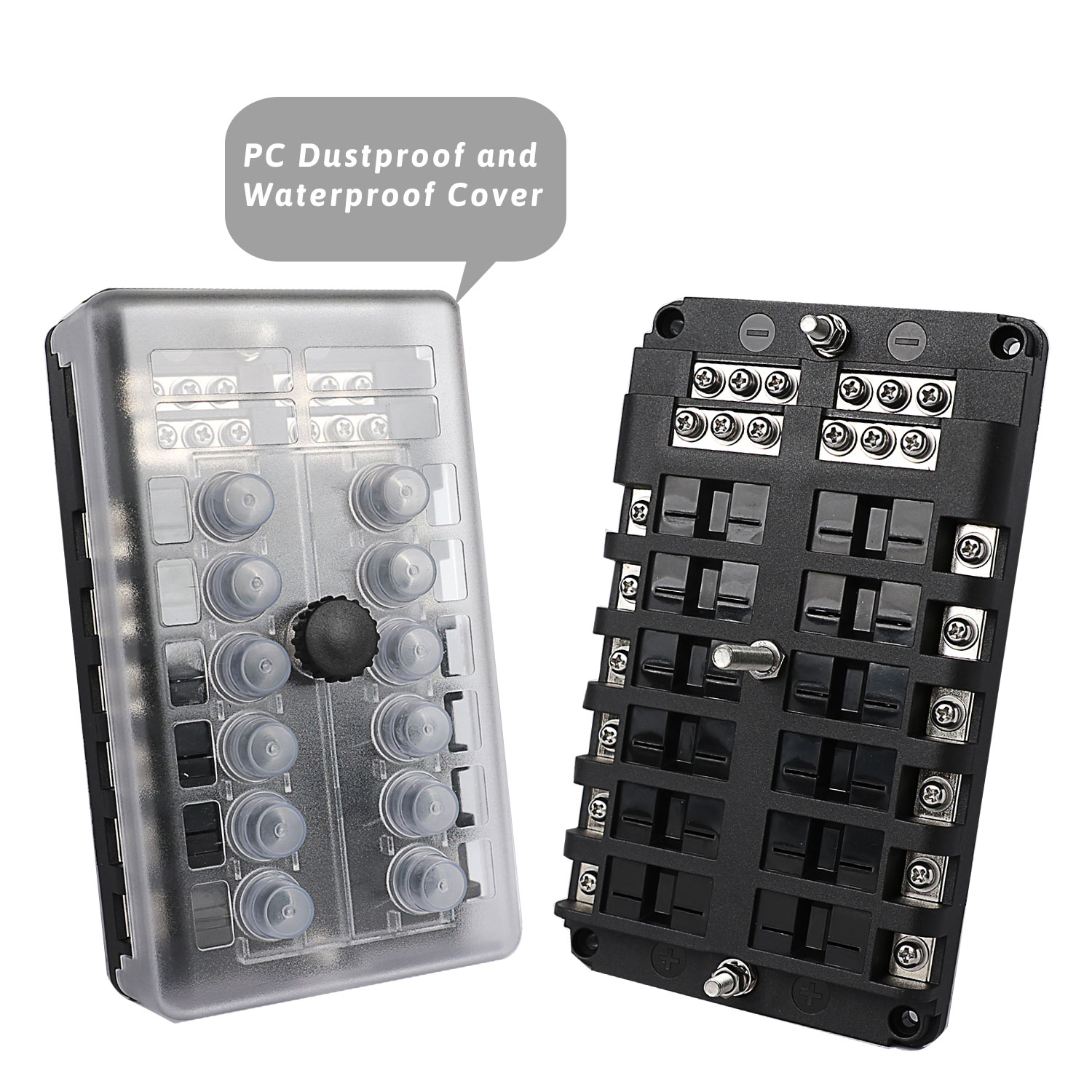

| Cover | PC | ||
| Screw | 304 SS | ||
| Terminal | Tin plated copper | ||
| Temperature rating | -20℃-85℃ | ||
| Certification | CE and Rohs | ||
Selection:

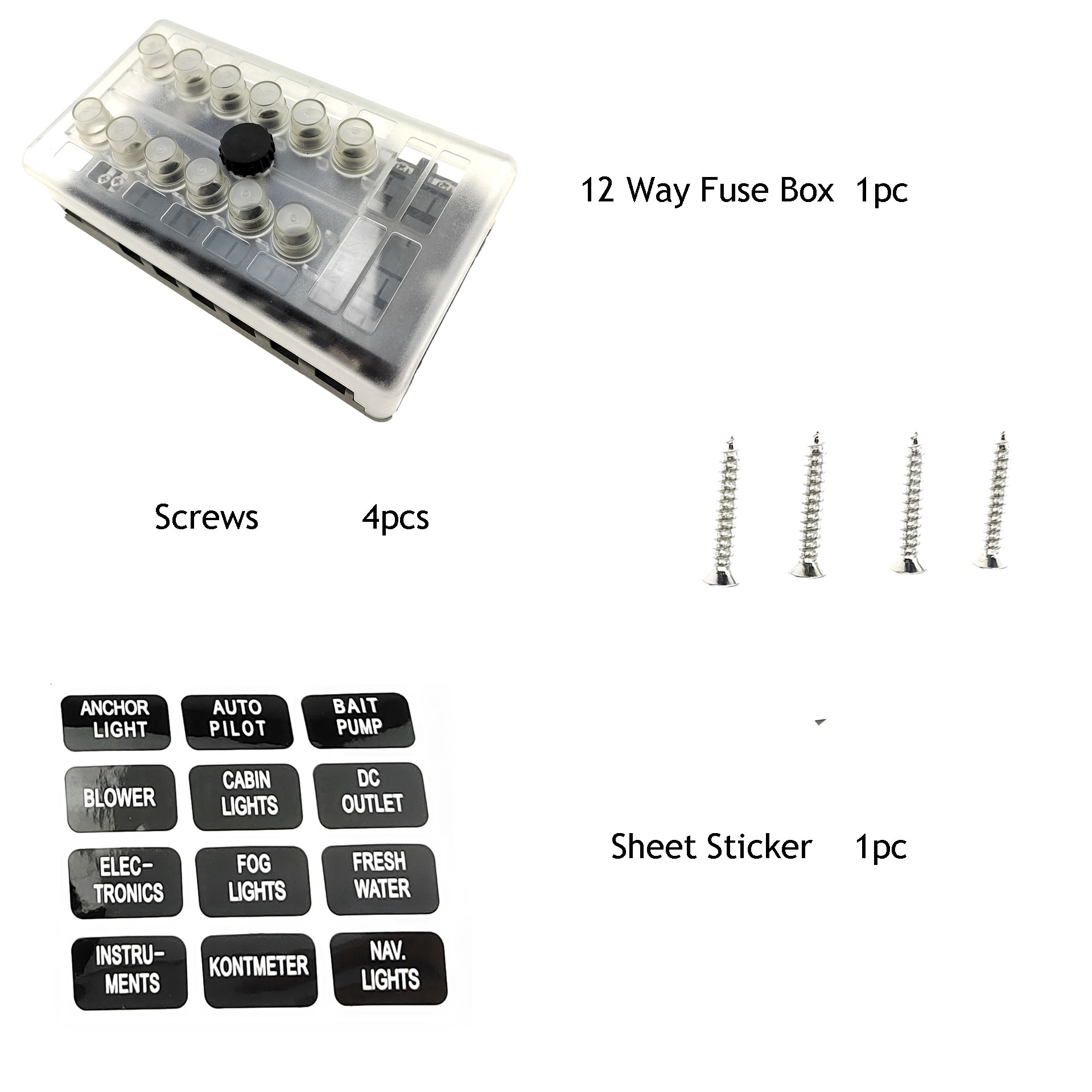

Sheet Sticker, 88 series Circuit breaker
