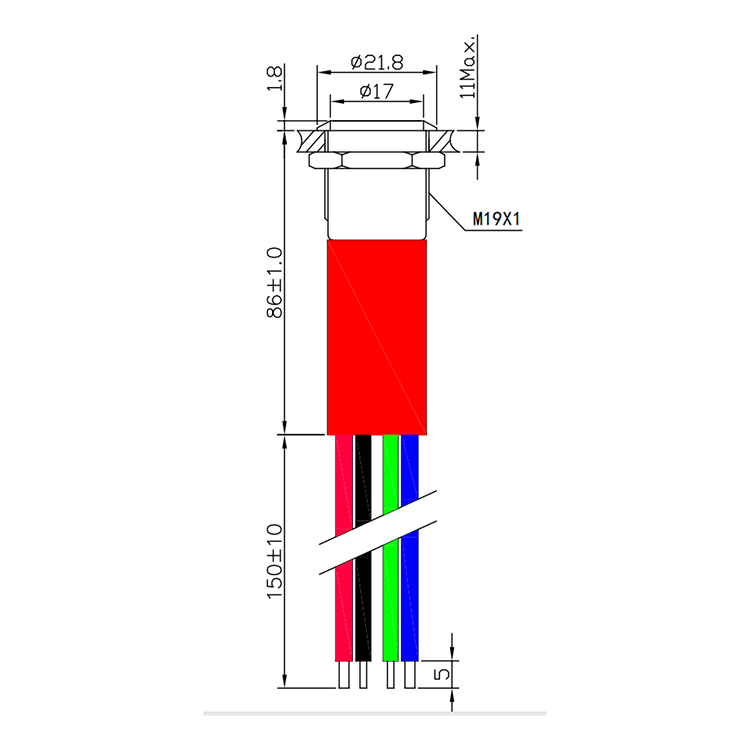

Mounting Hole Size: 19MM(3/4“) 22mm（7/8“）
Current rating： 20Amp
Body Material: 316 stainless steel, prection from salt spray
Base material: PBT, non-flammable
CE and Rohs approved .
Product Information：
Mounting Hole Size: 19MM(3/4“) 22mm（7/8“）
Current rating： 20Amp
Body Material: 316 stainless steel, prection from salt spray
Base material: PBT, non-flammable
CE and Rohs approved .
Features：
This semi-mechanical push button switch can withstand large current 20A. The circuit board can’t be burned during working, and anti-interference ability is very strong.

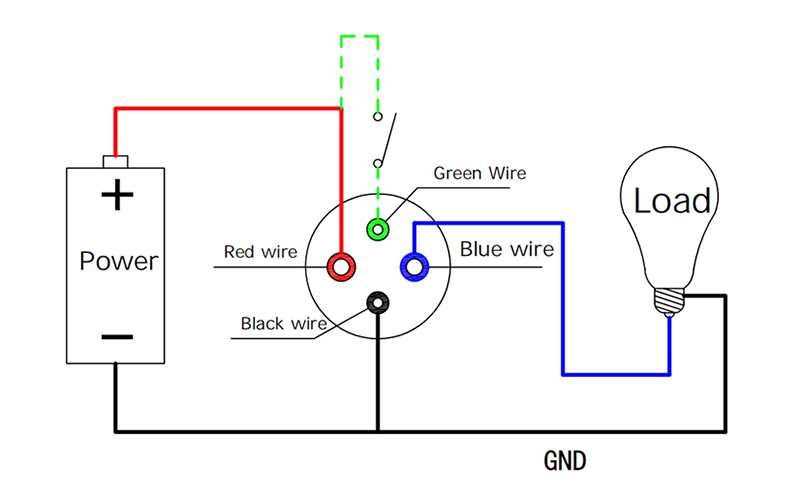

Function:
The green line is connected to power “+”,
Power on, the green LED on,
1st press turns on Load 1–Blue LED,
2nd press turns off–Green LED
| Item NO. | Function | LED Color | Max. Current | Material | ||
| ON | 1st ON | 2ND OFF | ||||
| ZY19PB-03GB/316SS | Momentary | GREEN | BLUE | GREEN | 20A | 316SS |
| ZY22PB-03GB/316SS | Momentary | GREEN | BLUE | GREEN | 20A | 316SS |
| ZY19PB-03GB/AL | Momentary | GREEN | BLUE | GREEN | 20A | Oxide AL |
| ZY22PB-03GB/AL | Momentary | GREEN | BLUE | GREEN | 20A | Oxide AL |
| Wire length | 15mm, 30mm, 60mm, customizable | |||||
| Logos | All kinds marine logos, customizable | |||||
| Voltage rating | 250VAC | |
| Max. Current | 20A | |
| Wire sieze | 14AWG 18AWG | |
| Mechanical life | 1,000,000 cycles | |
| Electrical life | 200,000 cycles | |
| Protection Degree | IP69K | |
| Contact Configuration | 1NO | |
| LED rating | 12V-24V | |
| LED color | B G | |
| Operate temp. | -20℃-+55 ℃ | |
| Travel | 3.3mm | |
| Mounting nut torque | 5~14Nm | |
| Terminal plug | 2.0*0.5mm | |
| Materials | Contact | Silver |
| Actuator | SS316 | |
| Body | SS316 | |
