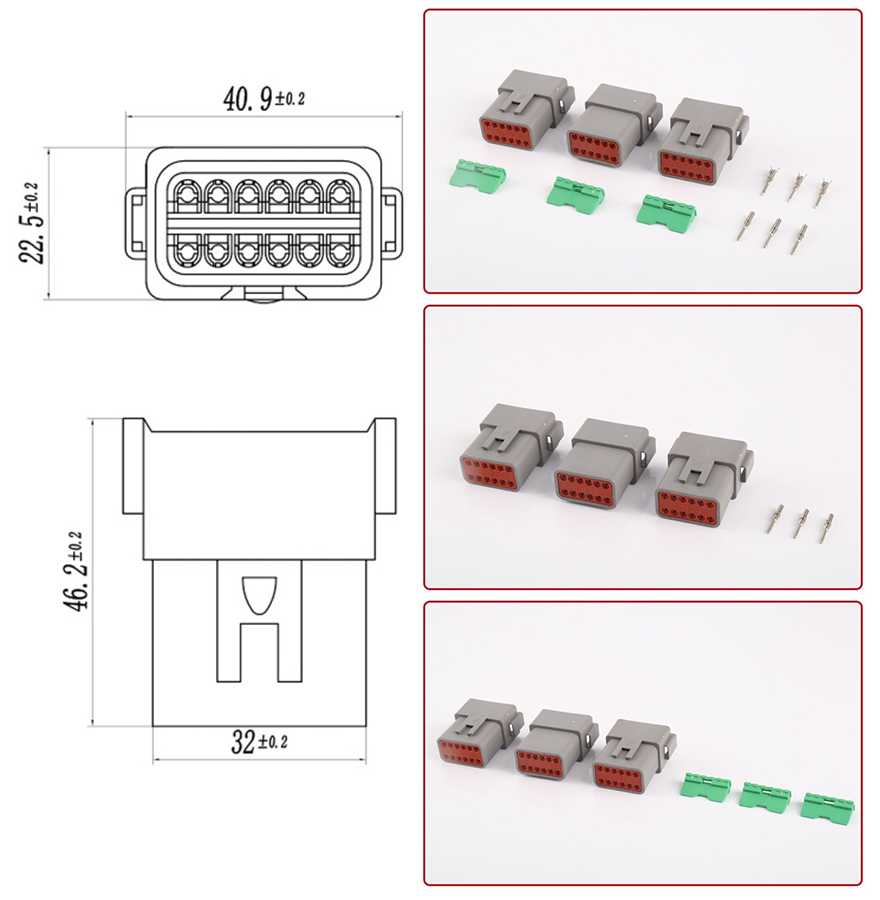

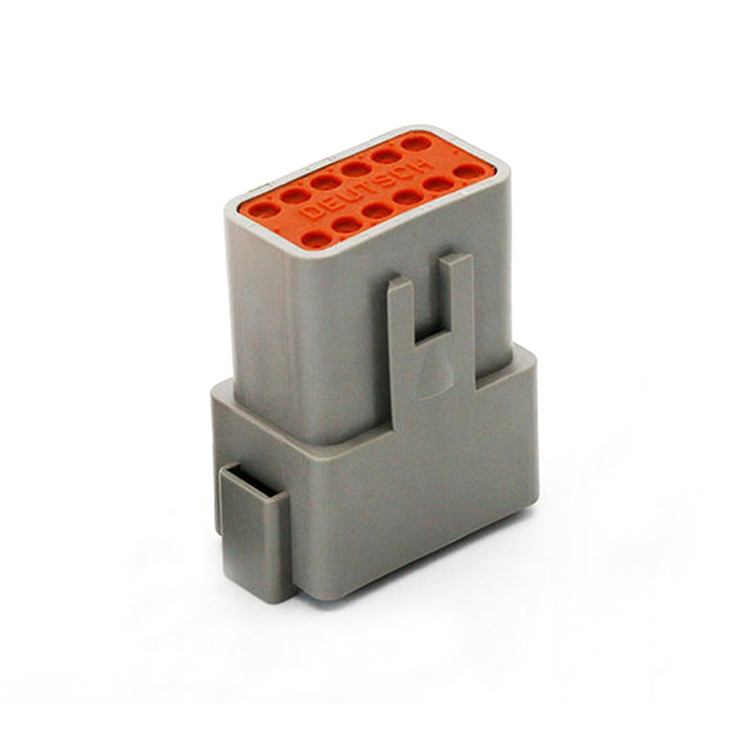

This DT04-12P connector is part of the DT series. It is a male connector and has 12 cavities.
Product Description
This DT04-12P connector is part of the DT series. It is a male connector and has 12 cavities. These are Deutsch compatible connectors and can be interchanged with any matching Deutsch parts. The DT series is capable of delivering 13 amps continuously.
Comes in bags of 100 with a separate bag of wedge locks included.
Uses 0460-215-16141 Machined terminal or 1060-14-0122 Stamped and Formed terminal.

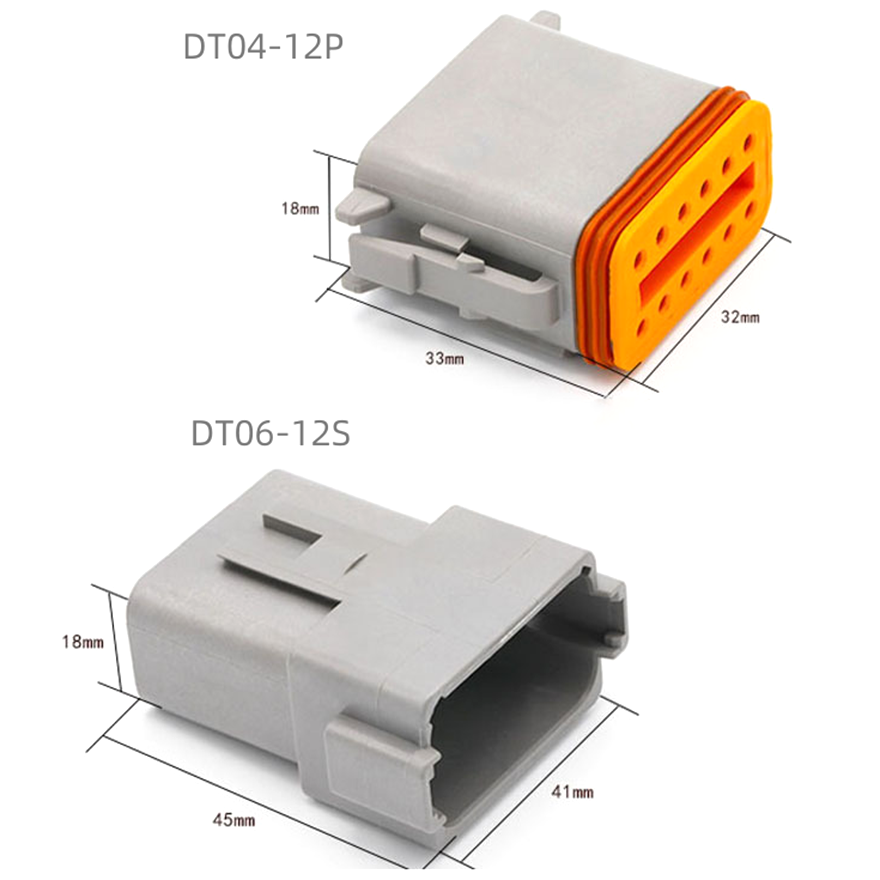

This connector is compatible with the DT06-12S.
Technical Parameters:
| Model | Compatibel with | Terminal |
| DT04-2P | DT06-2S | 1060-14-0122 1062-14-0122 |
| DT04-3P | DT06-3S | 1060-14-0122 1062-14-0122 |
| DT04-4P | DT06-4S | 1060-14-0122 1062-14-0122 |
| DT04-6P | DT06-6S | 1060-14-0122 1062-14-0122 |
| DT04-8P | DT06-8S | 1060-14-0122 1062-14-0122 |
| DT04-12P | DT06-12S | 1060-14-0122 1062-14-0122 |
