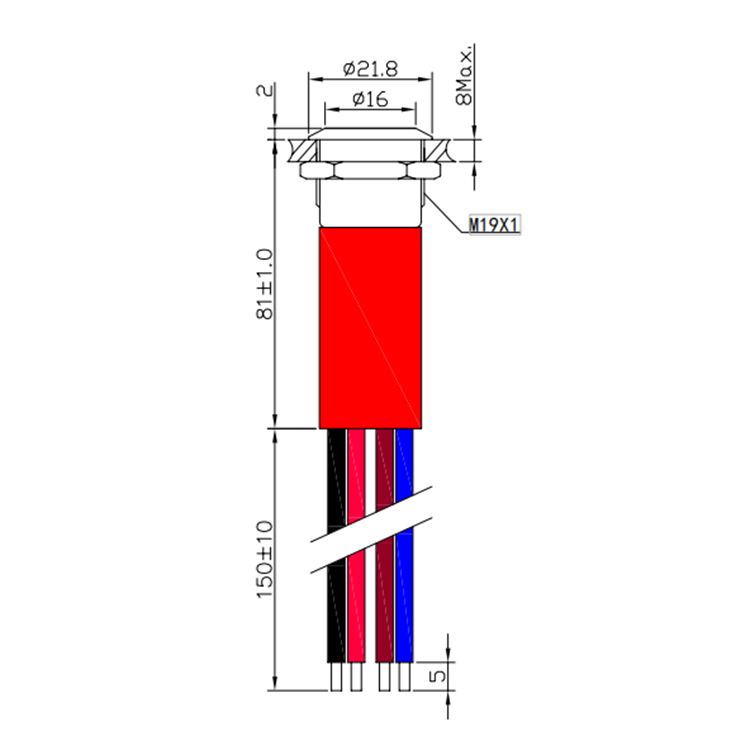

Mounting Hole Size: 19MM(3/4“)
Current rating： 10Amp,each channel 5A
Body Material: 316 stainless steel, prection from salt spray
Base material: PBT, non-flammable
CE and Rohs approved.
Product Information：
Mounting Hole Size: 19MM(3/4“)
Current rating： 10Amp,each channel 5A
Body Material: 316 stainless steel, prection from salt spray
Base material: PBT, non-flammable
CE and Rohs approved.

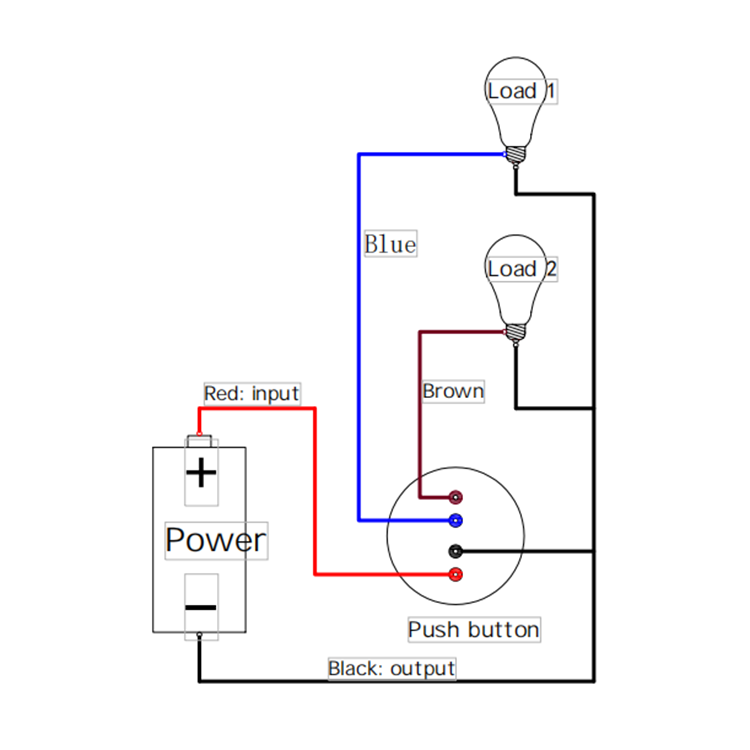

Operation:
1ST press, turns on Load 1–Red LED;
2ND press, turns on Load 2– Blue LED;
3RD press, turns off
| Item NO. | Function | LED Color | Max. Current | Material | ||
| Off | 1st ON | 2ND ON | ||||
| ZY19PB-04RB/316S | Momentary | NONE | RED | BLUE | 10A | 316SS |
| ZY22PB-04RB/316S | Momentary | NONE | RED | BLUE | 10A | 316SS |
| ZY19PB-04RB/AL | Momentary | NONE | RED | BLUE | 10A | Oxide AL |
| ZY22PB-04RB/AL | Momentary | NONE | RED | BLUE | 10A | Oxide AL |
| Wire Socket length | 15mm, 30mm, 60mm, customizble | |||||
| Logos | All kinds marine logos, customized | |||||
| Voltage rating | 250VAC | |
| Max. Current | 10A | |
| Wire sieze | 16AWG | |
| Mechanical life | 1,000,000 cycles | |
| Electrical life | 200,000 cycles | |
| Protection Degree | IP69K | |
| Contact Configuration | 1NO | |
| LED rating | 12V-24V | |
| LED color | R B G O Y W P | |
| Operate temp. | -20℃-+55 ℃ | |
| Travel | 2.8mm | |
| Materials | Contact | Silver |
| Actuator | SS316 | |
| Body | SS316 | |
| Bottom | PBT | |
| Tube | PA66-GF15 | |
| Inside tube | Epoxy resin | |
| Mounting nut torque | 5~14Nm | |
| Terminal plug | 2.0*0.5mm | |
